Example
for(int i = 0; i < 3; i++){
for(int j = 0; j < 5; j++){
cout << i << j << " ";
}
cout << endl;
}
This nested looping statement has an outer loop:
for(int i = 0; i < 3; i++){
}
The blue color coded are two statements which form the body of this outer loop:
for(int j = 0; j < 5; j++){
cout << i << j << " ";
}
cout << endl;
The first statement in the outer loop is also a for loop statement
The second statement in the outer loop simply moves the cursor to the beginning of the next line.
The program will repeatedly execute those two statements three times when the value of i takes the value of 0, 1, and 2
When i = 0, the program executes
for(int j = 0; j < 5; j++){
cout << 0 << j << " ";
}
and
cout << endl;
The first for loop statement displays following numbers on the screen and the second cout statement moves the cursor to the beginning of the next line.
00 01 02 03 04
When the outer loop completes the execution of those two statements, it changes the value of its looping variable i from 0 to 1, and then evaluates the outer loop continuation condition which is i<3.
Since i = 1, the outer loop continues and executes following two statements again, and this time, the value of i is 1 in the inner loop
for(int j = 0; j < 5; j++){
cout << 1 << j << " ";
}
and
cout << endl;
Now, the program displays following numbers on the screen:
10 11 12 13 14
Then, the computer goes back to the outer loop to change the value of i from 1 to 2, and evaluates the loop continuation condition of the outer loop.
When i = 2, the computer executes following two statements again:
for(int j = 0; j < 5; j++){
cout << 2 << j << " ";
}
and
cout << endl;
Displays following numbers on the screen:
20 21 22 23 24
Then, the computer goes back to the outer loop to change the value of i from 2 to 3, and evaluates the loop continuation condition of the outer loop.
When i = 3, the loop continuation condition of the outer loop becomes a false statement, the computer skip the statements in the body of the outer loop and move on to the next statement in the program. Now, following is the output of the program at this point:
00 01 02 03 04
10 11 12 13 14
20 21 22 23 24
Of cause, it is not necessary to use a nested loop statement to display those numbers on the screen, here we just use it as a sample code to help you to understand the logic of a nested looping statement.
=========================================================

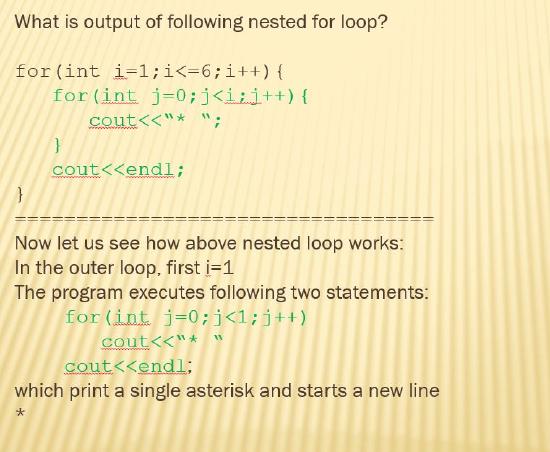

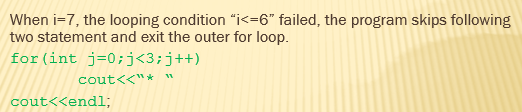

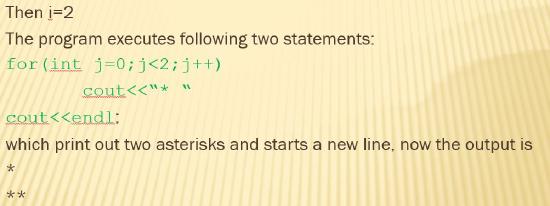

Now let's take a look another example.
=========================================================

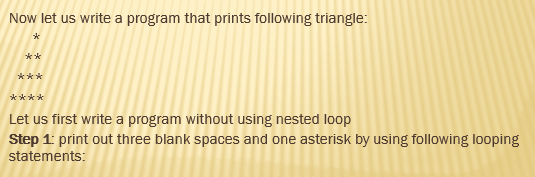

Above examples help you to be able to read a nested loop, so you can understand how a nested loop works. Now we try to write a nested loop statement to solve a programming problem.

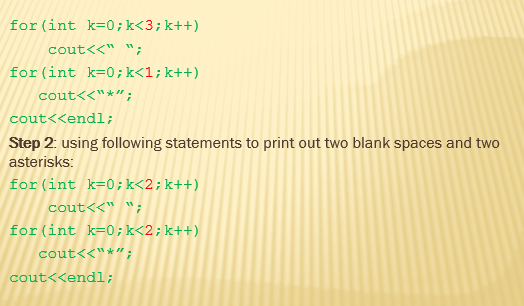

So, the outer loop changes the value of the variable i in each of the inner loops to produce four groups of the statements we mentioned in Step 1, 2, 3, and 4 which produce the output of the triangle we expected.
The last example may not be easy to understand, you may need to study it a couple of times to grasp the idea of the code.
