2.2: Fluid Conditioning Devices

The Function of a Fluid Conditioning Device and What It Is Used For

A Fluid Conditioning Device is a device that changes a fluid in some way. Think of an air filter like a cleaner for the air in a pneumatic system. Its job is to catch tiny particles like dust, dirt, and other contaminants that might be floating around in the air, just like how you use a strainer to catch bits of food when you're cooking pasta, an air filter catches the "bits" in the air before they can cause problems in the pneumatic system.

When air gets sucked into a pneumatic system, it might bring along all sorts of tiny stuff that you can't see with your eyes. If this dirty air gets into the system, it can clog up valves, jam up cylinders, and cause other parts to wear out faster. That's where the air filter comes in. It traps all those tiny particles, keeping the air clean and the system running smoothly.

So, in simple terms, an air filter is like a shield that protects the pneumatic system from getting clogged up with dirt and dust, helping it work better and last longer.

There are other types of conditioning that may be required. Maybe the air has too much moisture, and it needs to be removed; maybe the opposite. Maybe the air is too hot, and it needs to be cooled down; maybe the opposite. Fluid Conditioning Devices change the fluid into what is needed for work to be completed.

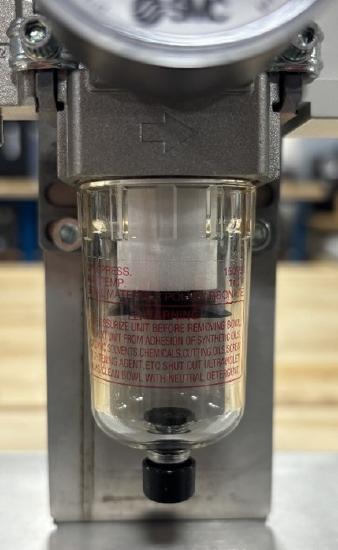

Figure \(\PageIndex{1}\): Pneumatic filters.

How Does It Work?

An air filter works by using a porous material, typically made of paper, fabric, or mesh, to trap and remove contaminants from the air as it passes through. Here's how it works:

1. Airflow: Dirty air enters the air filter housing through an inlet, often located on the side or top of the filter. The air then flows through the filter material.
2. Filter Material: Inside the air filter housing, the air passes through the filter material. This material is designed to capture particles like dust, dirt, pollen, and other contaminants present in the air.
3. Particle Capture: As the air passes through the filter material, the contaminants in the air become trapped in the fibers or pores of the material. This prevents the particles from continuing to flow through the system.
4. Clean Air Output: Once the air has passed through the filter material, it emerges on the other side as clean, filtered air. This clean air is then directed into the pneumatic system or the engine intake, depending on the application.
5. Maintenance: Over time, the filter material can become clogged with trapped particles, reducing its effectiveness. To ensure optimal performance, air filters need to be regularly inspected and replaced according to the manufacturer's recommendations.

In summary, an air filter works by using a specialized filter material to trap and remove contaminants from the air, ensuring that only clean air enters the pneumatic system or engine intake. This helps protect the system from damage and maintain optimal performance.

The Pneumatic Filter Drain and How to Drain It

Pneumatic filters often have a drain mechanism to remove any accumulated moisture or contaminants that have been captured by the filter. Draining the filter is important to maintain its effectiveness and prevent damage to the pneumatic system. Here's how you can drain a pneumatic filter:

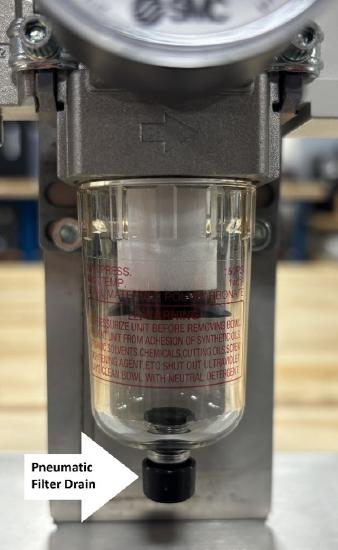

Figure \(\PageIndex{2}\): Pneumatic filter drain.

1. Locate the Drain Valve: Most pneumatic filters are equipped with a drain valve, which is typically located at the bottom of the filter housing. The drain valve may be manual or automatic.
2. Manual Drain Valve: If the filter has a manual drain valve, you'll need to open it manually to release any trapped moisture or contaminants. This is usually done by turning a knob or lever on the drain valve. Make sure to place a container or rag underneath the valve to catch any discharged fluid.
3. Automatic Drain Valve: Some pneumatic filters are equipped with automatic drain valves, which open periodically to release accumulated moisture or contaminants without the need for manual intervention. Automatic drain valves are often equipped with a timer or a float mechanism to control the draining process.
4. Drain the Filter: Whether manual or automatic, draining the filter is typically a simple process. Open the drain valve fully to allow the trapped fluid to flow out of the filter. It's important to ensure that the drain outlet is clear and unobstructed to prevent blockages.
5. Close the Drain Valve: Once the draining process is complete, close the drain valve securely to prevent air or fluid from escaping unintentionally. Ensure that the valve is properly sealed to maintain the integrity of the pneumatic system.
6. Verify Operation: After draining the filter, verify that the drain valve is closed securely and check for any signs of leakage. Additionally, monitor the filter periodically to ensure that it continues to operate effectively and drain as needed.

By regularly draining the pneumatic filter, you can help maintain the cleanliness and efficiency of the pneumatic system, prolonging its lifespan and reducing the risk of damage or malfunctions.

What Is Its Symbol?

The symbol for a conditioning device in pneumatic schematics typically looks like a diamond shape with additional markings.

Here are two basic representations of the symbol for a pneumatic quick-connect fitting:

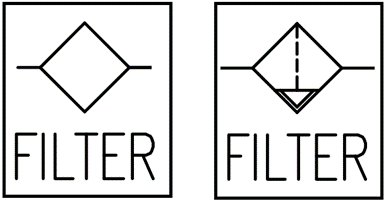

Figure \(\PageIndex{3}\): Pneumatic air filter and moisture filter (ISO 1219).

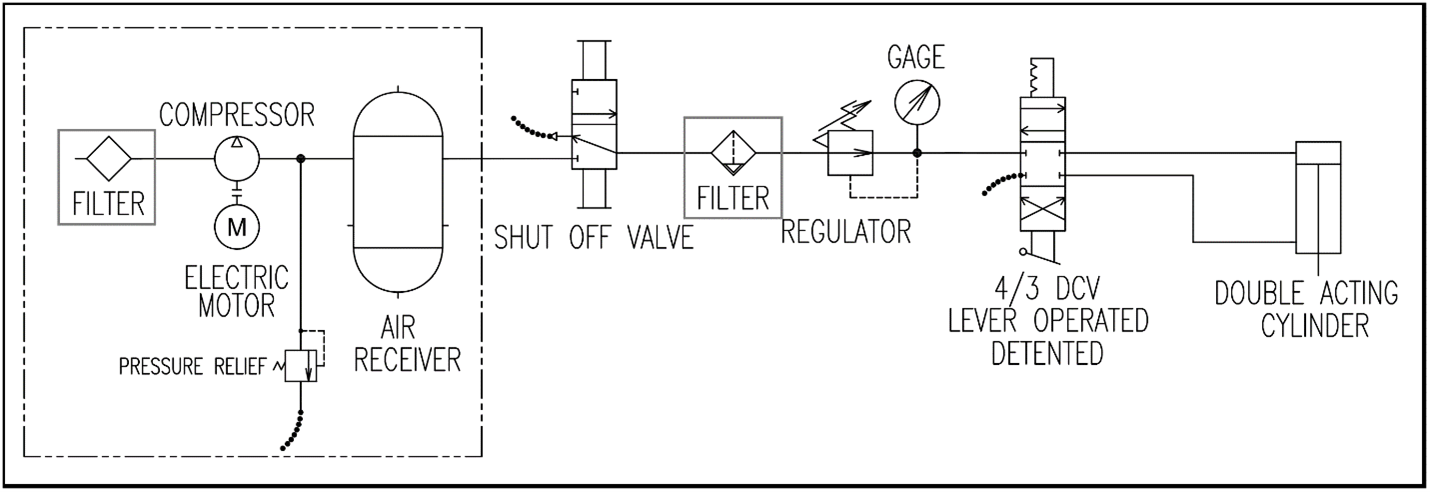

Figure \(\PageIndex{4}\): Air filters in a pneumatic circuit (ISO 1219).
