A pneumatic cylinder is like a magic wand that uses air power to move things around. It's a long, hollow tube with a piston inside that moves back and forth when air is pumped into it.
Imagine a toy car that you can push with your hand to make it move. In a pneumatic cylinder, the air does the pushing instead. When you pump air into one end of the cylinder, it pushes the piston, which then moves whatever is attached to it. It's like having a superhero arm that can push or pull things with the power of air!
So, in simple terms, a pneumatic cylinder is used to move objects back and forth in a pneumatic system, using the force of compressed air to do the heavy lifting. It's like the muscle of the system, helping machines and equipment perform all sorts of tasks.
The Double-Acting Pneumatic
A double-acting pneumatic cylinder is a type of pneumatic actuator that uses air pressure to move a piston in both directions, providing power for both extension and retraction movements. Here's how it works:
- Cylinder Construction: A double-acting pneumatic cylinder consists of a cylindrical tube, a piston, and two ports—one for air intake and one for exhaust. The piston is fitted with seals to create airtight chambers on both sides.
- Extension Stroke: To extend the piston, compressed air is directed into one end of the cylinder through the intake port. The pressure of the air pushes the piston in one direction, causing it to move outward. As the piston extends, the air on the opposite side of the piston is exhausted through the exhaust port.
- Retraction Stroke: To retract the piston, compressed air is directed into the opposite end of the cylinder through the intake port. The pressure of the air pushes the piston in the opposite direction, causing it to move inward. As the piston retracts, the air on the previous side of the piston is exhausted through the exhaust port.
- Repeating the Cycle: The process of extending and retracting the piston can be repeated as needed by controlling the flow of compressed air into the cylinder. By alternately pressurizing and exhausting the air on either side of the piston, the double-acting cylinder can produce continuous and controlled linear motion.
- Applications: Double-acting pneumatic cylinders are commonly used in various industrial applications, such as manufacturing, automation, and robotics, where precise and controlled linear motion is required. They provide reliable and efficient actuation for tasks such as pushing, pulling, lifting, and clamping.
What is its Symbol?

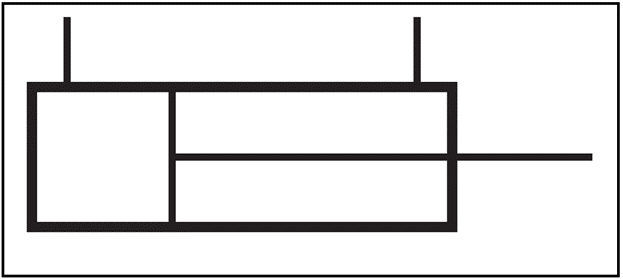

In pneumatic schematics, the symbol for a double-acting pneumatic cylinder typically looks like this:
This symbol represents the cylindrical shape of the cylinder with the piston inside. The arrows on both sides of the cylinder indicate that air can flow in and out to move the piston in both directions, representing its double-acting functionality.
How Does it Extend and Retract?
A double-acting pneumatic cylinder extends and retracts by controlling the flow of compressed air into and out of the cylinder through its ports. Here's how the process works:
Extension Stroke:
- Compressed air is directed into one end of the cylinder through the intake port.
- The pressure of the compressed air pushes against the piston, causing it to move outward (extend).
- As the piston moves outward, the air on the opposite side of the piston is exhausted through the exhaust port.
- The extension stroke continues until the desired position is reached or until the air supply is stopped.
Retraction Stroke:
- Compressed air is then directed into the opposite end of the cylinder through the intake port.
- The pressure of the compressed air pushes against the piston from the opposite side, causing it to move inward (retract).
- As the piston moves inward, the air on the previous side of the piston is exhausted through the exhaust port.
- The retraction stroke continues until the desired position is reached or until the air supply is stopped.
By alternately controlling the flow of compressed air into and out of the cylinder through its ports, the double-acting pneumatic cylinder is able to extend and retract, providing controlled and reversible linear motion for various applications.
