In a pneumatic system, there are primarily two types of resistance that affect the performance and efficiency of the system: flow resistance and pressure resistance.
Flow Resistance
Flow resistance, also known as flow impedance or pressure drop, refers to the resistance encountered by the compressed air as it flows through the components of the pneumatic system. This resistance is primarily caused by factors such as friction, changes in direction, and restrictions in the flow path.
Three Main Causes of Flow Resistance
- Frictional losses - As compressed air flows through pipes, hoses, valves, fittings, and other components, it experiences frictional resistance, which leads to a loss of pressure and energy.
- Changes in direction - Whenever the flow direction changes, such as at elbows, bends, or tees, flow resistance increases due to momentum changes and turbulence in the air stream.
- Restrictions - Narrow passages, constrictions, or partially closed valves can create restrictions in the flow path, causing increased flow resistance.
How Flow Resistance Affects a Pneumatic System
- Reduced airflow - Flow resistance decreases the flow rate of compressed air through the system, which can lead to slower actuation of pneumatic devices and decreased performance.
- Energy loss - Pressure drop across components due to flow resistance results in energy loss, reducing the overall efficiency of the pneumatic system.
- Heat generation - Flow resistance causes frictional heating of the compressed air, leading to temperature increases within the system.
Pressure Resistance
Pressure resistance, also known as back pressure or load resistance, refers to the resistance encountered by the compressed air when it's applied to perform work or overcome external forces in the pneumatic system. This resistance opposes the flow of air and requires the system to maintain sufficient pressure to overcome it.
Causes of Pressure Resistance
- Mechanical loads - Pneumatic actuators, cylinders, and other devices exert resistance against the compressed air when they perform work, such as lifting loads, moving objects, or applying force.
- External forces - In applications such as pneumatic tools, the resistance encountered during cutting, drilling, fastening, or other tasks contributes to pressure resistance in the system.
Effects of Pressure Resistance
- Increased energy consumption - Higher pressure resistance requires the pneumatic system to generate and maintain higher pressures, leading to increased energy consumption.
- Reduced speed and force - Higher pressure resistance limits the speed and force output of pneumatic actuators and tools, affecting their performance and efficiency.
- Risk of system overload - Excessive pressure resistance can overload the pneumatic components and lead to system failure or damage if not properly controlled.
Both flow resistance and pressure resistance need to be carefully considered and managed in pneumatic system design to ensure optimal performance, efficiency, and reliability for various applications. Proper selection of components, sizing of pipes and fittings, and control of operating parameters help minimize resistance and maximize the effectiveness of the pneumatic system.
Loads at the Actuator

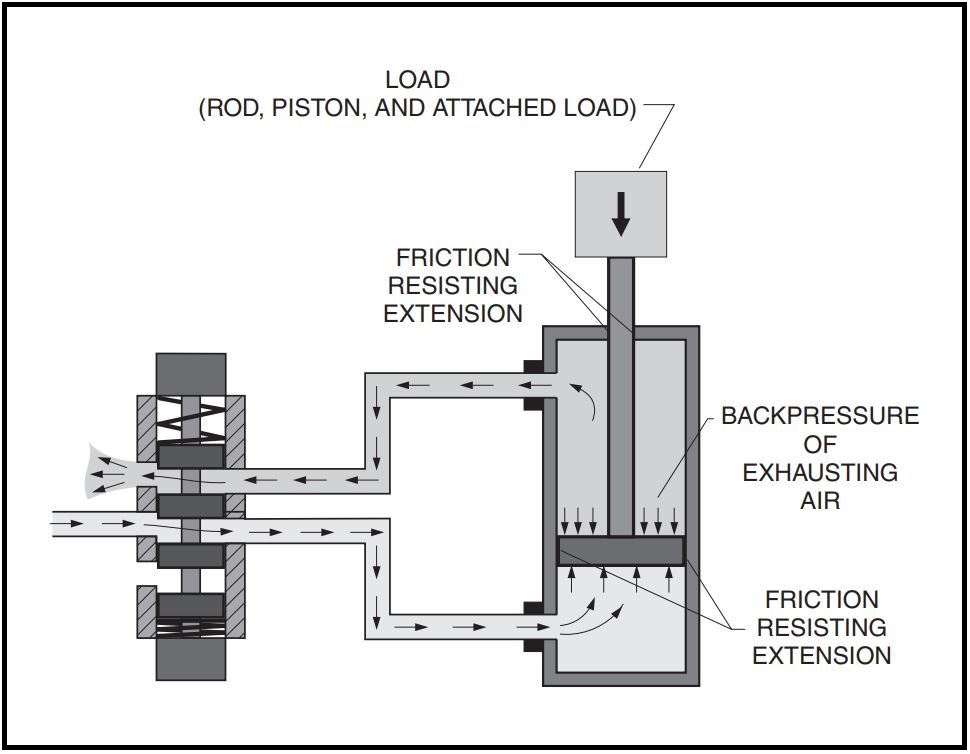

Loads at the actuator in a pneumatic system refer to the forces or loads that the actuator needs to overcome or apply during its operation. Actuators are devices that convert the energy from compressed air into mechanical motion, allowing them to perform various tasks such as lifting, pushing, pulling, rotating, or controlling the movement of objects or machinery. The loads at the actuator can be categorized into two main types: resistive loads and inertial loads.
Resistive Loads
Resistive loads are forces that oppose the motion of the actuator and require it to exert force to overcome them. These loads can result from factors such as the weight of objects being lifted, friction between moving parts, or resistance encountered during the operation of pneumatic tools.
- Vertical Loads - In applications where the actuator needs to lift or support a load vertically, such as in lifting platforms, elevators, or material handling equipment, the resistive load is primarily due to the weight of the load being lifted. The actuator must exert enough force to overcome the gravitational force acting on the load and lift it to the desired height.
- Horizontal Loads - When the actuator is used to push, pull, or move objects horizontally, such as in conveyor systems, pushing mechanisms, or door opening/closing systems, the resistive load arises from factors such as friction between surfaces, resistance from the environment, or the weight of the object being moved. The actuator must generate sufficient force to overcome these resistive forces and move the object smoothly and efficiently.
Inertial Loads
Inertial loads refer to the forces experienced by the actuator due to the acceleration or deceleration of masses it is moving. These loads are related to the mass of the object being accelerated or decelerated and the rate of change of its velocity.
- Acceleration Loads - When the actuator is used to accelerate a load, such as in conveyor systems or robotic applications, inertial loads arise due to the mass of the load and the rate at which its velocity changes. The actuator must apply sufficient force to accelerate the load smoothly and prevent sudden jerks or vibrations.
- Deceleration Loads - Similarly, when the actuator is used to decelerate a moving load, such as in braking systems or safety mechanisms, inertial loads occur as the actuator opposes the momentum of the moving mass. The actuator must provide braking force to slow down the load safely and control its deceleration rate.
Effectively managing resistive and inertial loads is essential for ensuring the proper operation, performance, and longevity of pneumatic actuators and the overall pneumatic system. Proper selection of actuators, consideration of load characteristics, and implementation of appropriate control strategies help optimize system performance and efficiency while minimizing wear and potential damage to components.
Loads from Air Friction
Loads from air friction, also known as aerodynamic loads, occur when a pneumatic actuator or object moves through a fluid medium, such as air. These loads can affect the performance, stability, and efficiency of the system, particularly in applications where high-speed motion or precise control is required. Here's more detail about loads from air friction:
Drag Force
Drag force is the primary component of aerodynamic loads and is caused by the interaction between the object and the air it moves through. When an object moves through the air, it disrupts the airflow around it, creating areas of high pressure in front of the object and low pressure behind it. This pressure difference generates a drag force that opposes the motion of the object.
- Magnitude - The magnitude of the drag force depends on factors such as the shape, size, and speed of the object, as well as the density and viscosity of the air. Larger objects with irregular shapes or high speeds experience greater drag forces.
- Direction -The drag force acts in the direction opposite to the object's motion, slowing it down and requiring additional force to overcome.
Effects of Air Friction
- Reduced Speed - Air friction increases the resistance encountered by the moving object, leading to a decrease in its speed or velocity. This can affect the performance of pneumatic actuators or systems that rely on high-speed motion, such as pneumatic conveyors, robotic arms, or automated manufacturing processes.
- Increased Energy Consumption - To overcome the drag force and maintain the desired speed, the pneumatic system must supply additional energy, resulting in increased energy consumption and reduced overall efficiency.
- Vibration and Instability - Aerodynamic loads can induce vibrations or instabilities in the system, especially at high speeds or in applications with irregular airflow patterns. These vibrations can affect the accuracy, precision, and stability of the pneumatic actuator's motion, leading to reduced performance or potential damage to components.
- Heat Generation - The interaction between the moving object and the air can generate heat due to frictional forces. In pneumatic systems operating at high speeds, this heat generation may contribute to temperature increases within the system, affecting the performance and longevity of components.
Mitigation Strategies
- Streamlining - Designing objects with smooth, streamlined shapes can help minimize drag and reduce aerodynamic loads. Aerodynamic shapes, such as airfoils or streamlined profiles, are often used in applications where air friction is a significant factor.
- Reduced Cross-Sectional Area - Minimizing the cross-sectional area exposed to airflow can reduce drag and aerodynamic loads. This can be achieved through compact design, streamlined contours, or retractable components.
- Controlled Airflow - Implementing airflow control devices, such as baffles, spoilers, or air deflectors, can help manage airflow around the object and reduce drag forces. These devices are often used in applications where precise airflow management is critical for performance optimization.
By understanding and effectively managing loads from air friction, pneumatic systems can be designed and operated to achieve optimal performance, efficiency, and stability in various applications.
