The velocity of air in a pneumatic system refers to how quickly it moves through a pipe. This speed is essential in determining how fast air reaches actuators and tools, influencing response time and operational efficiency. Velocity is commonly measured in feet per second (fps) and varies with the flow rate and pipe size. For example, 20 SCFM (“standard” cubic feet per minute) moving through a large pipe may travel at 100 fps (feet per second), but in a smaller pipe, it may reach 200 fps.
In pneumatic systems, critical velocity—the maximum achievable airspeed—is approximately the speed of sound (about 100 fps at normal temperatures). Although seldom a concern in typical industrial systems, critical velocity would be relevant in applications demanding ultra-fast response times.
Understanding Flowmeters in Pneumatic Systems
Flowmeters play a crucial role in measuring actual air flow rates in industrial systems. These measurements help rate the performance of both new and existing equipment. For instance, large air compressors often undergo flow rate testing when new to confirm operational efficiency. Years later, the same test may be used to identify issues if performance declines.
The most effective way to measure air flow rate is by using a flowmeter. Various types of flowmeters are available, with one of the most common being the rotameter or variable orifice flowmeter. This type is widely used in industrial applications and is commonly found on pneumatic trainers.
Function and Application of Flowmeters
Flowmeters are essential for verifying that pneumatic systems, such as compressors, deliver their specified flow rates. By periodically measuring the flow rate, technicians can confirm that equipment continues to function optimally or identify when maintenance is required. This is particularly valuable in troubleshooting scenarios, as a drop in the measured flow rate could indicate obstructions, leaks, or wear in the system.
Operation of a Rotameter

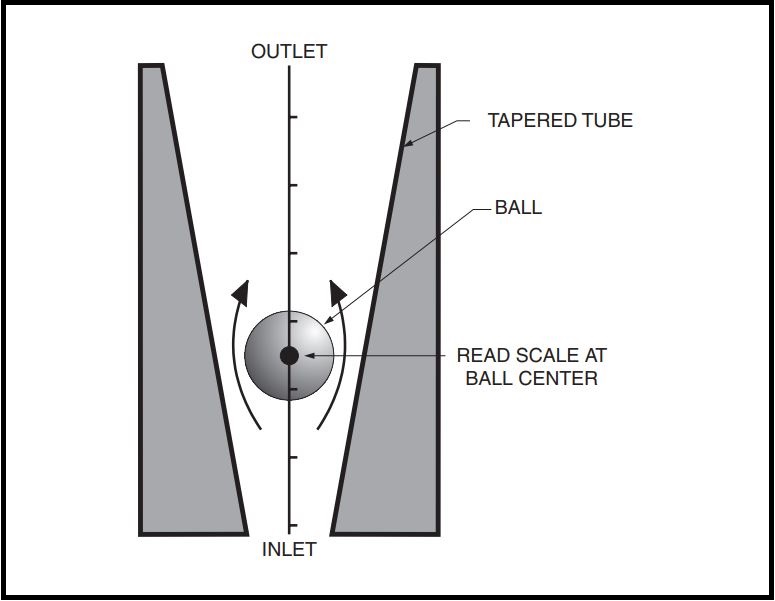

A rotameter, in this case, is a specific type of variable orifice flowmeter designed to measure flow rate with precision. It consists of a clear acrylic tube with a tapered, round internal shape and a metal ball that moves within it. The ball is specifically sized and weighted to correlate with a standard calibration scale marked on the outside of the tube.
- Construction and Principle: Inside the tube, the metal ball rests near the narrow bottom when no flow is present. As air enters through the inlet at the bottom, it flows around the ball, creating a pressure difference that lifts the ball up. The upward movement continues until the ball reaches an equilibrium point where the pressure differential around it precisely balances its weight.
- Reading the Flow Rate: The flow rate is read by observing the position of the ball against the scale inscribed on the tube, which is calibrated to display the flow rate in standard cubic feet per hour (SCFH) on pneumatic trainers. The center of the ball aligns with the measurement scale, indicating the current flow rate accurately.
- Origin of the Term: The term "rotameter" comes from the subtle rotation of the ball within the tube. This rotation is caused by air molecules colliding with minute irregularities on the ball’s surface, making the ball turn as it rises.
Connecting and Operating a Rotameter
To connect and operate a rotameter properly, observe these steps:
- Needle Valve Control: Most rotameters, including the one on a typical pneumatic trainer, come with an integrated needle valve at the inlet. This valve allows the user to gradually introduce air, preventing sudden bursts that could rapidly lift the ball, potentially causing damage.
- Observing Flow and Pressure Changes: Upon opening the needle valve, the air begins to flow, lifting the ball in the tube, while air exhausts from the outlet. Increasing the pressure will produce a corresponding rise in flow rate, lifting the ball higher in the tube.
Through controlled adjustments and readings, the rotameter provides accurate flow measurements, making it invaluable for applications where precise airflow control is essential, such as in calibration or testing environments.
