    Specialized Flow Control Circuits

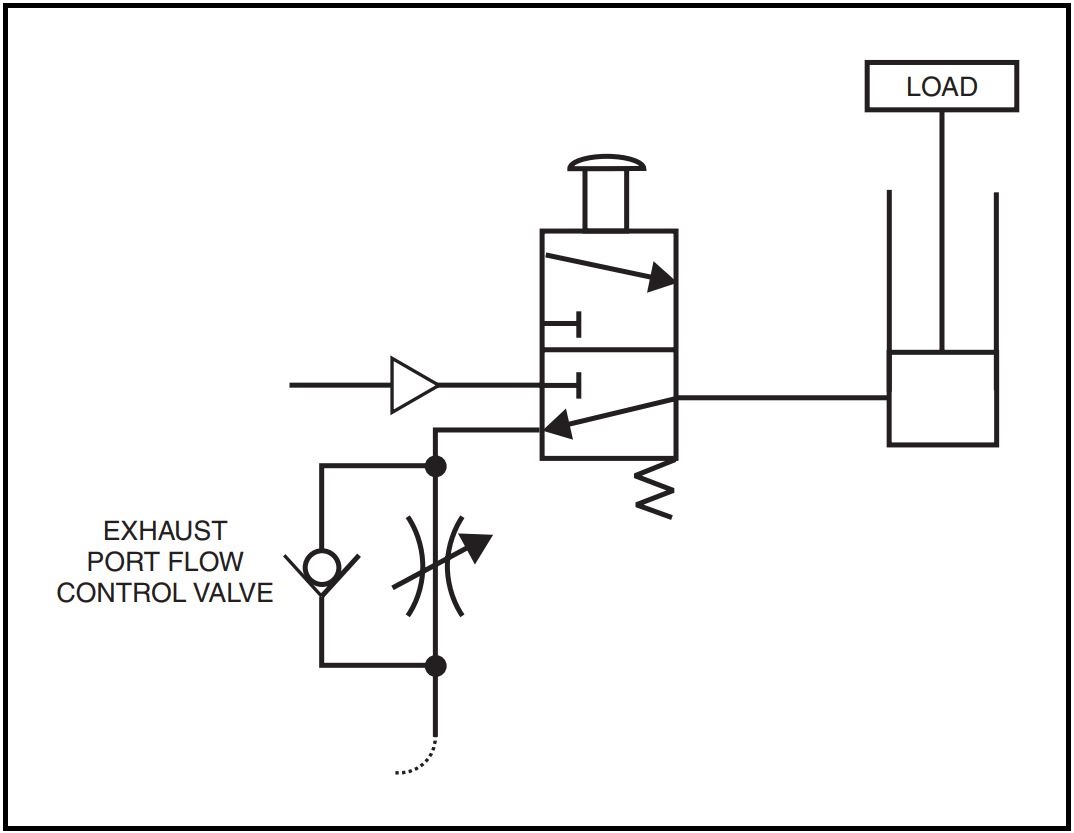

    A Pneumatic Schematic showing an exhaust port flow control valve and the load.
    Figure \(\PageIndex{1}\): A Pneumatic Schematic. (ISO 1219)

    Exhaust Port Control

    Many directional control valves (DCVs) allow connection of flow controls at exhaust ports to limit exhaust flow and create backpressure. This configuration, a meter-out circuit, is particularly effective for single-acting cylinders where loads vary. An example includes controlling retract speed for a part-handling cylinder that lowers parts of varying weights.

    A Pneumatic Schematic showing an pressure-port flow control valve.
    Figure \(\PageIndex{2}\): A Pneumatic Schematic. (ISO 1219)

    Pressure Port Control

    Placing a flow control in the DCV’s pressure line provides a meter-in circuit suitable for opposing loads, such as in a double-acting agitator cylinder where speed must be regulated in both directions.

    Independent Speed Control

    A Pneumatic Schematic showing gage A, flow control valve A on bottom and B on top, gage B, and the cylinder.
    Figure \(\PageIndex{3}\): A Pneumatic Schematic. (ISO 1219)

    In industrial settings, it’s often necessary to adjust actuator speeds independently in each direction. This independent speed control is useful in scenarios where, for example, a machine's cylinder needs to move slowly while performing work but can reset at high speed. Applications include forming presses where a cylinder extends slowly during pressing but retracts quickly for the next cycle. Additionally, due to cylinder area differences in the rod and cap ends, speed naturally varies in each direction; independent speed control allows identical extension and retraction speeds if required.

    Operation Summary and Applications

    In practice, connecting and adjusting these various flow control setups allows for precise manipulation of actuator speeds in pneumatic systems. Meter-in and meter-out circuits provide tailored speed control to accommodate opposing or aiding loads, respectively. Independent speed controls enable further customization for each stroke direction, enhancing operational efficiency in many industrial processes.
