    A large part of our day as designers is spent on correcting technical drawings and documenting those changes if necessary. Let us review how to make our drawings clear, complete, and concise in Autodesk Inventor.

    Dimension Grips

    Selecting a dimension will reveal its grips, the green dots at the end points of the extension lines and dimension line. By clicking and dragging the end points a designer can relocate the extension lines. This is useful when extension lines are touching the object.

    Dimension text can be moved by clicking and dragging the text. The dimension like will automatically follow the text as you drag. To further modify the look of your dimension, you can right click the dimension and select Options.

    Figure 20: Dimension Grips Grips help you to move dimensions on an Inventor drawing.

    Leaders (Radius and Diameter, Notes, float up)

    Selecting a leader will reveal grips. Selecting the arrowhead grip allows you to change what the leader is pointing to. Selecting the grip at the landing allows you to move the leader text any direction. Selecting the leader text only allows you to move the leader text left and right (not up or down). Right clicking a leader allows you to change leader Options.

    Figure 21: Leader Grips Grips help you to move leaders on an Inventor drawing.

    Precision and Tolerance

    Precision is the number of places shown after the decimal point of a dimension value. If precision is all the need to be changed, you can right click and choose Precision in the drop-down menu.

    Tolerance is the allowable deviation of a dimension value. Double-click a dimension to open the Edit Dimension dialog box, then select the Precision and Tolerance tab to change the dimension tolerance. Reference and Basic dimensions can also be applied here.

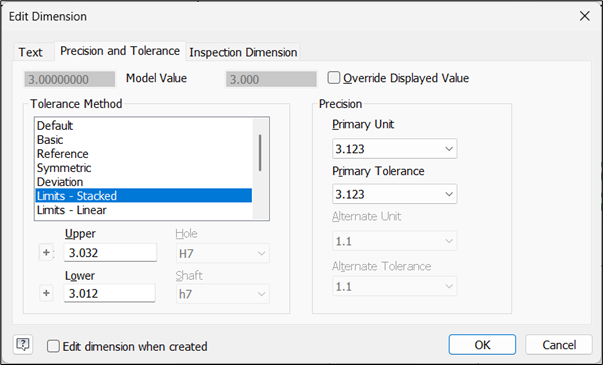

    Figure 22: Precision and Tolerance Tab in the Edit Dimension Dialog Box Double-click a dimension to open the Edit Dimension dialog box, then select the Precision and Tolerance tab to change the dimension tolerance.

    Drawing View

    Double click a drawing view to open the Edit Drawing View dialog box. In the File section the file name of the current model is shown. Under Representation you can choose pre-saved Model State or Design View, if any. In the Style section you can choose whether hidden lines are shown or not. In the Label section you can change the View Identifier (useful for Section Views), change the Scale, and decide if you want the View Label shown on the drawing by clicking the lightbulb icon on or off. Further edit View Label by clicking the pencil.

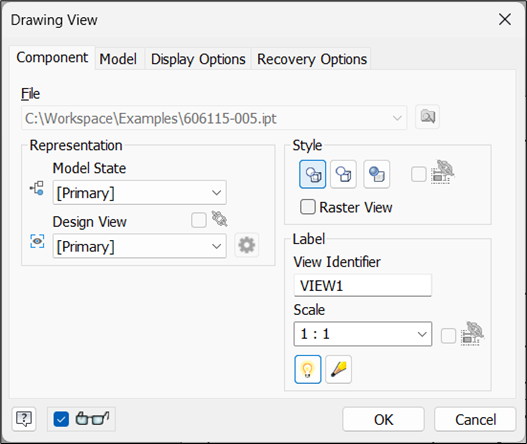

    Figure 23: Drawing View Dialog Box clipboard_eda93befb927359c04abe6470d4534959.png
