2.21: Feedback

Learning Objectives: Feedback

1. Understand how the closed-loop gain relates to the feedforward and feedback system functions
2. Implement stabilization using negative feedback
3. Design systems to compensate for nonideal amplifiers

YouTube Videos

Feedback

Feedback Stabilization Example

Summary

Feedback → using the output of a system to control or modify your input

└ Adaptive Optics

Figure 2.21.1: Example of an open-loop system.

Figure 2.21.2: Example of a closed-loop system.

Whereas the open-loop system does not allow us to make corrections, a closed-loop system allows us to have

• Better control of system components
• Being able to detect any misalignment

Linear Feedback Systems

Assumption: \(H(s)\) is either unilateral or bilateral transform → \(H(s)\) causal and \(ROC_H\) to the right of the rightmost pole

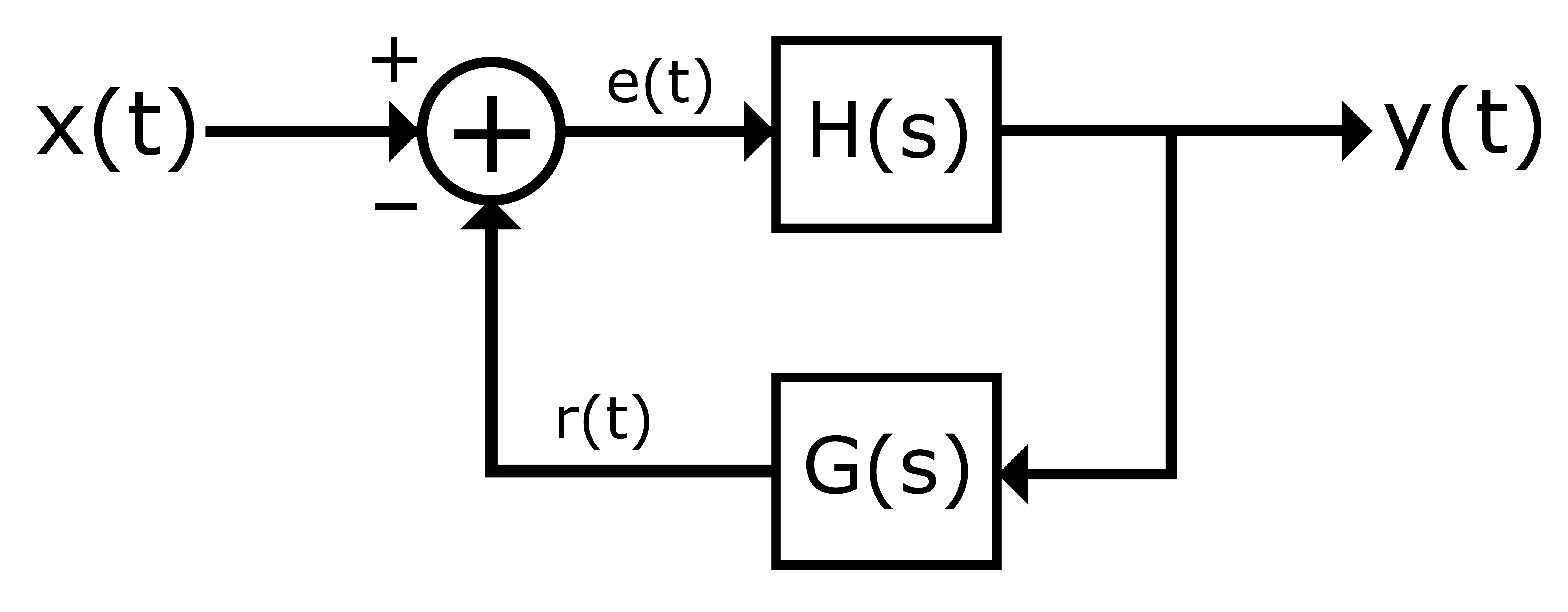

Figure 2.21.3: Example of a linear feedback system design.

\(r(t)\): signal fed back

\(e(t)=x(t)-r(t)\): error between input signal and actual response

\(H(s)\): system function of the forward path
\(G(s)\): system function of the feedback path
\(Q(s)\): closed-loop system function

\[ Q(s)=\frac{Y(s)}{X(s)}=\frac{H(s)}{1+G(s)H(s)} \]

include both forward and feedback paths

Inverse System Design

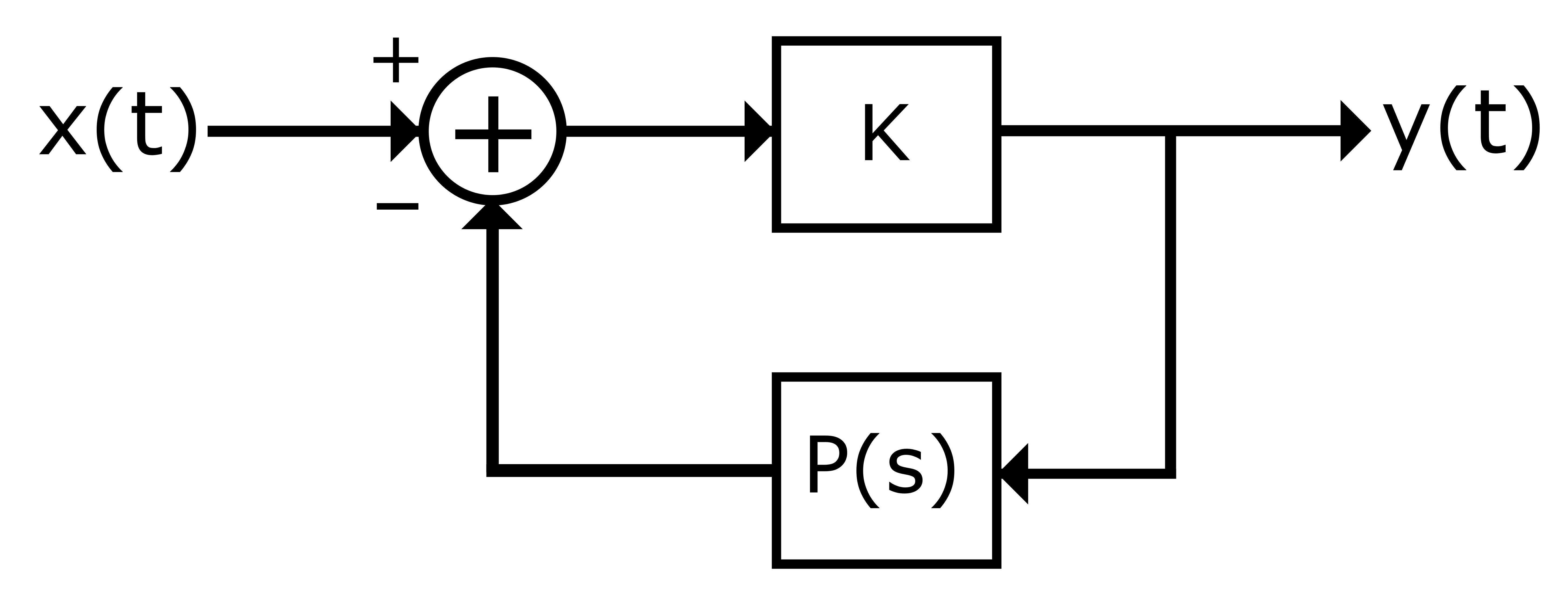

Figure 2.21.3: Example of an inverse system design.

\(H(s)=k\)

\(P(s)\): system function of feedback path \(=G(s)\)

\[ Q(s)=\frac{H(s)}{1+H(s)P(s)}=\frac{k}{1+kP(s)}\approx \frac{k}{kP(s)}=\frac{1}{P(s)} \]

\(k\gg\) large and \(1 \ll kP(s)\)

\(Q(s)=k\) is the inverse of the feedback system

Compensation for NonIdeal Elements

Use of feedback systems to correct some non-ideal properties/measurements of the open-loop system

\(G(s)=K\) → \[ Q(s)=\frac{H(s)}{1+G(s)H(s)}=\frac{H(s)}{1+K\,H(s)}\approx \frac{H(s)}{K\,H(s)}=\frac{1}{K}=Q(s) \]

CONDITION: the closed loop gain \(\frac{1}{K}\) is substantially less than the open-loop gain \(|H(j\omega)|\)

KEY POINT: If \(K\ll 1\), \(|H(j\omega)|\) is an amplifier but without erratic gain

WATCH OUT: Find right \(K\) so it is small for high \(|Q|\) but big enough so \(|KH| \gg 1\).

Stabilization of Unstable Systems

Use of feedback systems to stabilize systems that are a-priori unstable

Example

(1) control trajectory of a rocket; (2) regularization of nuclear reactions in a nuclear power plant; (3) stabilization of an aircraft;

(4) natural and regulatory control of animal populations

\[ H(s)=\frac{b}{s-a} \] 1st-order system \(a>0\) → \(h(t)\) unstable

\[ G(s)=k \] constant gain

\begin{align*}
Q(s) &= \frac{H(s)}{1 + G(s)H(s)}
= \frac{\dfrac{b}{s-a}}{1 + k\,\dfrac{b}{s-a}}
= \frac{b}{s-a+kb}.
\end{align*}

pole @ \(s = a-kb\)

The close-loop system is stable if the pole \(s<0\), so \(kb>a\)

proportional feedback system

\[ H(s)=\frac{b}{s^2+a} \]

\(a>0\) → 2nd-order system → \(H(s)\) has imaginary poles and \(h(t)\) is sinusoidal

\(H(s)=\dfrac{b}{s^2+a}\), \(a<0\) → \(H(s)\) has one pole in the left-side plane and one in the right-half plane → \(H(s)\) is unstable.

\[ G(s)=k \]

\[ Q(s)=\frac{H(s)}{1+G(s)H(s)} =\frac{\dfrac{b}{s^2+a}}{1+k\,\dfrac{b}{s^2+a}} =\frac{b}{s^2+a+kb} \]

\[ \frac{b}{s^2+a+kb} =\frac{\omega_n^2}{s^2+2\zeta\omega_n s+\omega_n^2} \]

We cannot stabilize the system because we do not have any damping \(\zeta\).

\[ G(s)=k_1+k_2s \quad \text{(proportional-plus-derivative)} \]

\[ Q(s)=\frac{b}{s^2+bk_2s+(a+k_1b)} \]

where \(bk_2>0\) and \(a+k_1b>0\)

Sampled-data feedback systems

The output of a CT signal is sampled

Figure 2.21.4: Representation of the stabilization system for the given example.

\[ z(t)=d[n] \quad \text{for } nT\le t<(n+1)T \quad \text{only a period} \]

\[ d[n]=p[n]*g[n] \quad (\text{in TL}) \]

\[ p[n]=y(nT) \]

Tracking systems

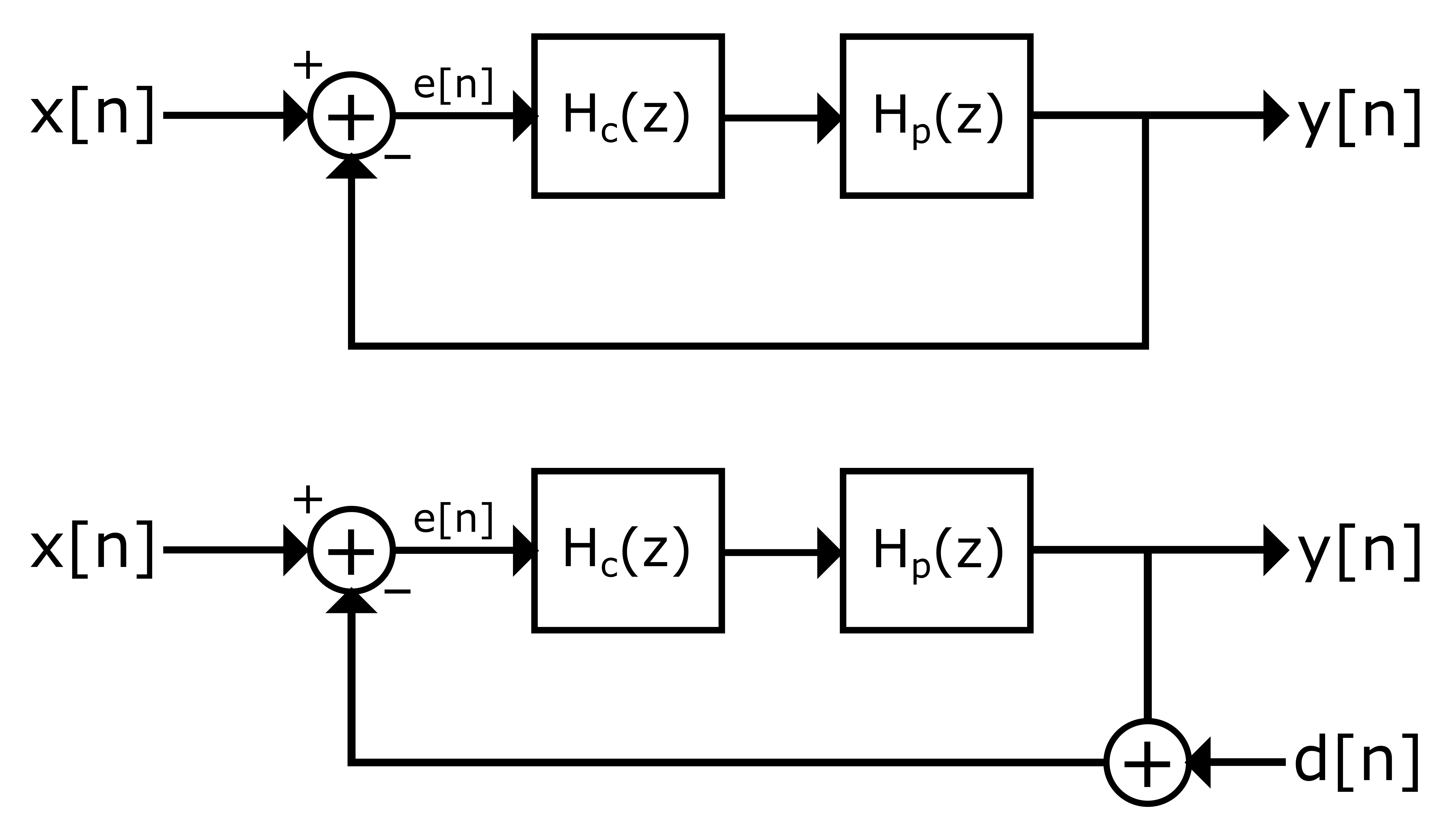

Figure 2.21.5: Representation of a tracking system without (top) and with (bottom) accounting for disturbance \(d[n]\).
