Let’s try fitting a fifth degree polynomial to the data in example 38.
Example 9.2.1
>> x=0:5;y=[12,10,9,6,2,0];
>> coeffs5=polyfit(x,y,5)
returns
coeffs5 =
-0.0167 0.3333 -2.0833 4.6667 -4.9000 12.0000
which are the coefficients for the approximating 5th order polynomial, namely
y = −0.0167x5 + 0.3333x4 − 2.0833x3 + 4.6667x2 − 4.9x + 12.
We could type out the full polynomial, but there is a shortcut. We can use the function polyval along with linspace to give a smooth approximating curve.
>> x5=linspace(0,5);
>> y5=polyval(coeffs5,x5);

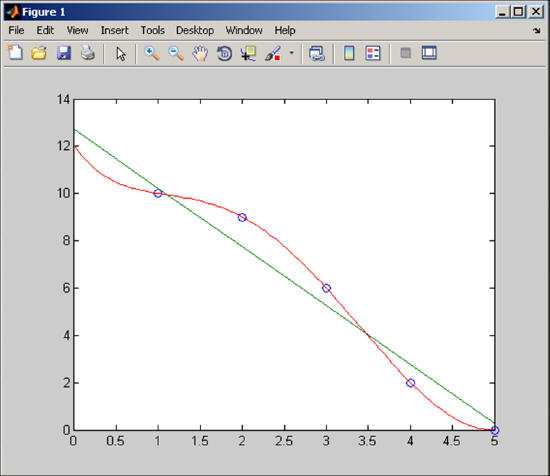

We plot the curves
>> plot(x,y,’o’,x,besty,x5,y5)
