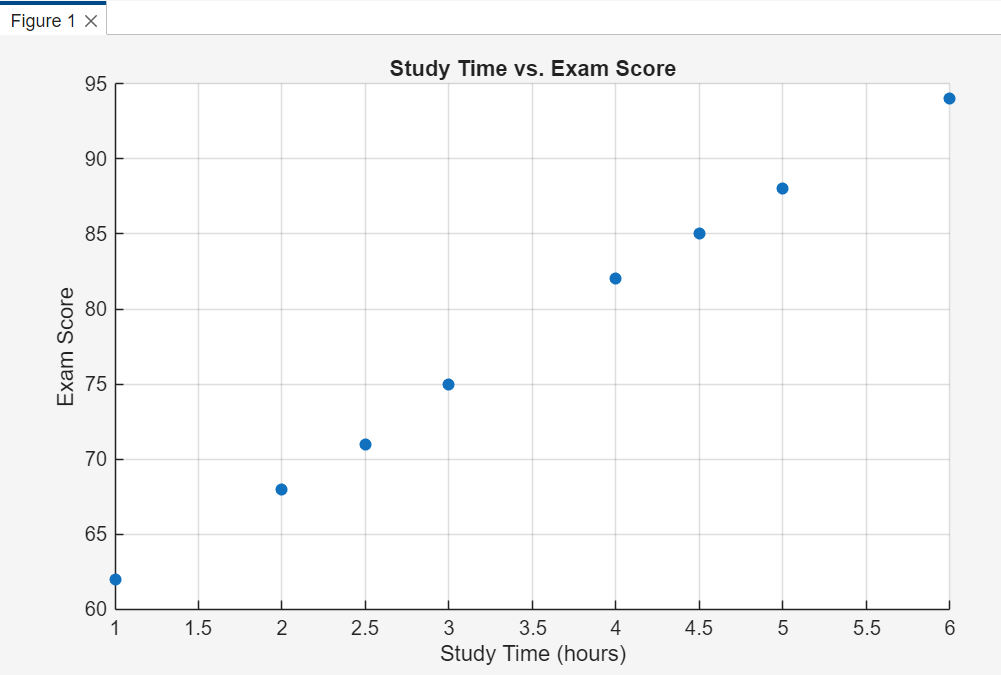

Plotting exam scores vs. study hours.
clear; clc; clf;
studyHours = [1 2 2.5 3 4 4.5 5 6];
scores = [62 68 71 75 82 85 88 94];
scatter(studyHours, scores, 'filled')
xlabel('Study Time (hours)')
ylabel('Exam Score')
title('Study Time vs. Exam Score')
grid on
Solution
Unlike a line plot, a scatter plot does not imply that the points should be connected in order. It emphasizes the individual data points and the overall relationship between the variables.
