    13.7.1 Roco & Shook (1983)

    Figure 13.7-1: Roco & Shook (1983) d=0.165 mm, Dp=0.0515 m.

    Screen Shot 2020-08-13 at 11.19.56 AM.png

    Figure 13.7-2: Roco & Shook (1983) d=0.165 mm, Dp=0.2630 m.

    Screen Shot 2020-08-13 at 11.20.55 AM.png

    Figure 13.7-3: Roco & Shook (1983) d=0.165 mm, Dp=0.4950 m.

    Screen Shot 2020-08-13 at 11.21.55 AM.png

    Figure 13.7-4: Roco & Shook (1983) d=0.480 mm, Dp=0.0515 m.

    Screen Shot 2020-08-13 at 11.22.56 AM.png

    Figure 13.7-5: Roco & Shook (1983) d=0.520 mm, Dp=0.0507 m.

    Screen Shot 2020-08-13 at 11.23.48 AM.png

    Figure 13.7-6: Roco & Shook (1983) d=13.0 mm, Dp=0.2630 m.

    Screen Shot 2020-08-13 at 11.24.37 AM.png

    15.7.2 Gillies (1993)

    Figure 13.7-7: Gillies (1993) d=0.180 mm, Dp=0.0532 m, vls=1.8 m/s.

    Screen Shot 2020-08-13 at 11.25.40 AM.png

    Figure 13.7-8: Gillies (1993) d=0.180 mm, Dp=0.0532 m, vls=3.1 m/s.

    Screen Shot 2020-08-13 at 11.26.37 AM.png

    Figure 13.7-9: Gillies (1993) d=0.180 mm, Dp=0.4950 m, vls=3.1-3.8 m/s.

    Screen Shot 2020-08-13 at 11.27.33 AM.png

    Figure 13.7-10: Gillies (1993) d=0.190 mm, Dp=0.1590 m, vls=2.5-2.7 m/s.

    Screen Shot 2020-08-13 at 11.29.47 AM.png

    Figure 13.7-11: Gillies (1993) d=0.190 mm, Dp=0.1590 m, vls=3.7 m/s.

    Screen Shot 2020-08-13 at 11.30.50 AM.png

    Figure 13.7-12: Gillies (1993) d=0.290 mm, Dp=0.0532 m, vls=1.8 m/s.

    Screen Shot 2020-08-13 at 11.31.44 AM.png

    Figure 13.7-13: Gillies (1993) d=0.290 mm, Dp=0.0532 m, vls=3.1 m/s.

    Screen Shot 2020-08-13 at 11.36.20 AM.png

    Figure 13.7-14: Gillies (1993) d=0.290 mm, Dp=0.2630 m, vls=4.0-4.7 m/s.

    Screen Shot 2020-08-13 at 11.39.50 AM.png

    Figure 13.7-15: Gillies (1993) d=0.380 mm, Dp=0.2630 m, vls=4.1-4.8 m/s.

    Screen Shot 2020-08-13 at 11.47.12 AM.png

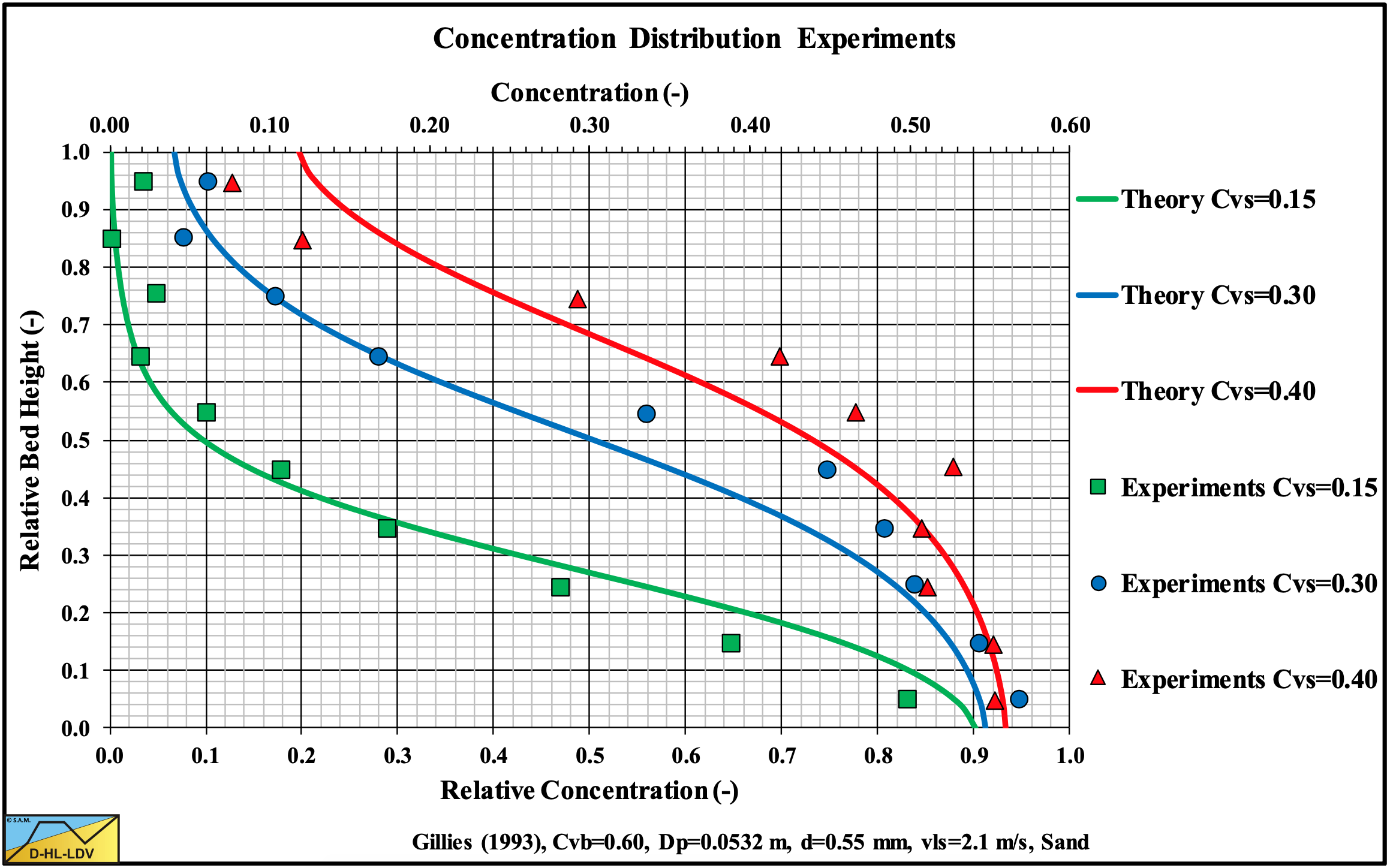

    Figure 13.7-16: Gillies (1993) d=0.550 mm, Dp=0.0532 m, vls=2.1 m/s.

    Screen Shot 2020-08-13 at 11.48.09 AM.png

    Figure 13.7-17: Gillies (1993) d=0.550 mm, Dp=0.0532 m, vls=3.1 m/s.

    Screen Shot 2020-08-13 at 11.49.08 AM.png

    Figure 13.7-18: Gillies (1993) d=0.550 mm, Dp=0.2630 m, vls=3.9-4.4 m/s.

    Screen Shot 2020-08-13 at 11.49.59 AM.png

    Figure 13.7-19: Gillies (1993) d=2.4 mm, Dp=0.0532 m, vls=1.8-3.1 m/s.

    Screen Shot 2020-08-13 at 11.50.52 AM.png

    Figure 13.7-20: Gillies (1993) d=2.4 mm, Dp=0.2630 m, vls=3.3-4.0 m/s.

    Screen Shot 2020-08-13 at 11.51.59 AM.png

    15.7.3 Gillies (2004)

    Figure 13.7-21: Gillies (2004) d=0.090 mm, Dp=0.1030 m, vls=3.0 m/s.

    Screen Shot 2020-08-13 at 11.53.23 AM.png

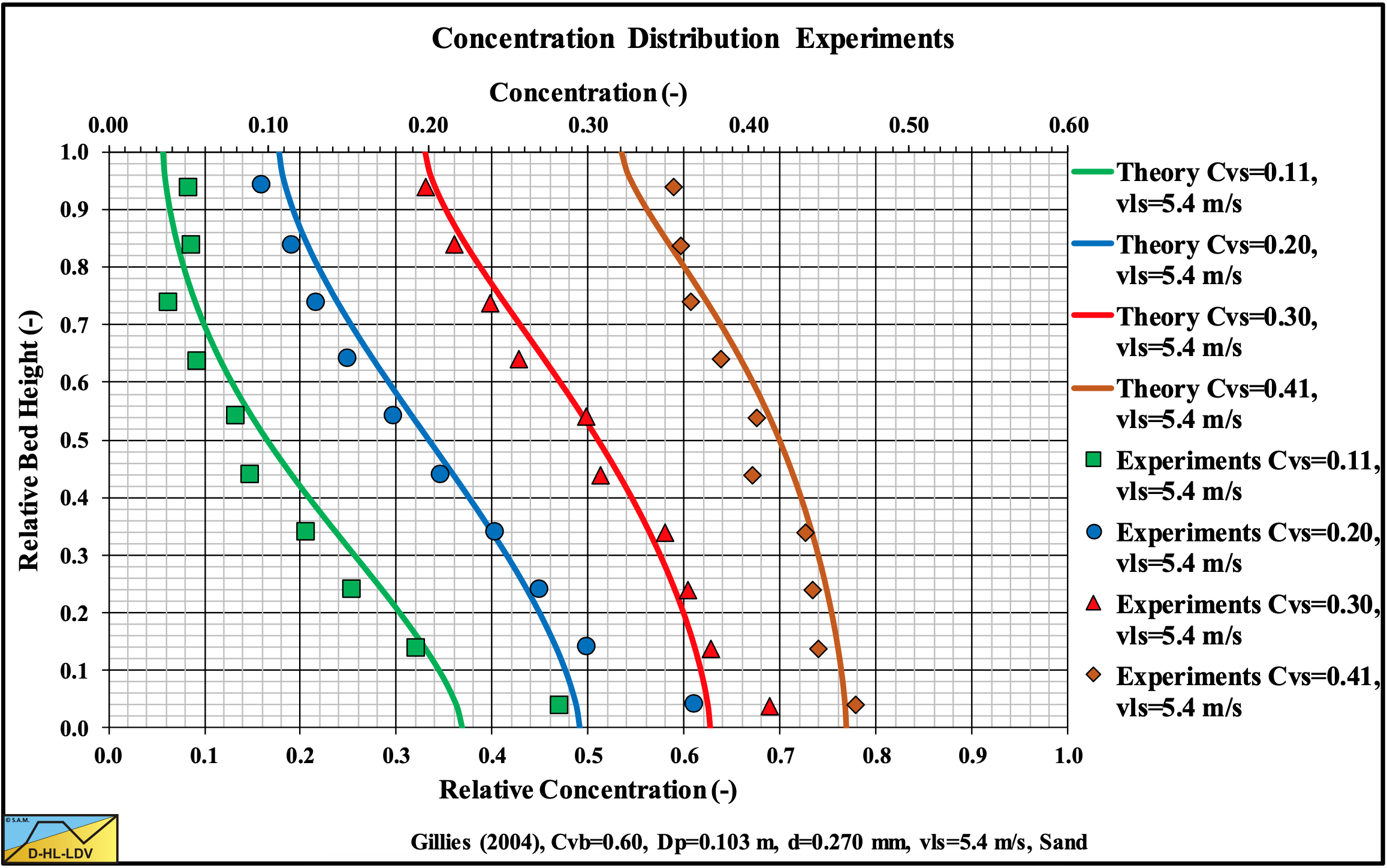

    Figure 13.7-22: Gillies (2004) d=0.270 mm, Dp=0.1030 m, vls=5.4 m/s.

    Screen Shot 2020-08-13 at 11.55.15 AM.png

    13.7.4 Kaushal & Tomita (2005)

    Figure 13.7-23: Kaushal & Tomita (2005) d=0.125 mm, Dp=0.0549 m, Cvs=0.10.

    Screen Shot 2020-08-13 at 1.31.23 PM.png

    Figure 13.7-24: Kaushal & Tomita (2005) d=0.125 mm, Dp=0.0549 m, Cvs=0.30.

    Screen Shot 2020-08-13 at 1.32.18 PM.png

    Figure 13.7-25: Kaushal & Tomita (2005) d=0.440 mm, Dp=0.0549 m, Cvs=0.10.

    Screen Shot 2020-08-13 at 1.33.11 PM.png

    Figure 13.7-26: Kaushal & Tomita (2005) d=0.440 mm, Dp=0.0549 m, Cvs=0.20.

    Screen Shot 2020-08-13 at 1.34.10 PM.png

    Figure 13.7-27: Kaushal & Tomita (2005) d=0.440 mm, Dp=0.0549 m, vls=4.0 m/s.

    Screen Shot 2020-08-13 at 1.38.53 PM.png

    15.7.5 Matousek et al. (2009) & (2014)

    Figure 13.7-28: Matousek et al. (2014) d=0.440 mm, Dp=0.1000 m, vls=3.0 m/s.

    Screen Shot 2020-08-13 at 1.41.37 PM.png

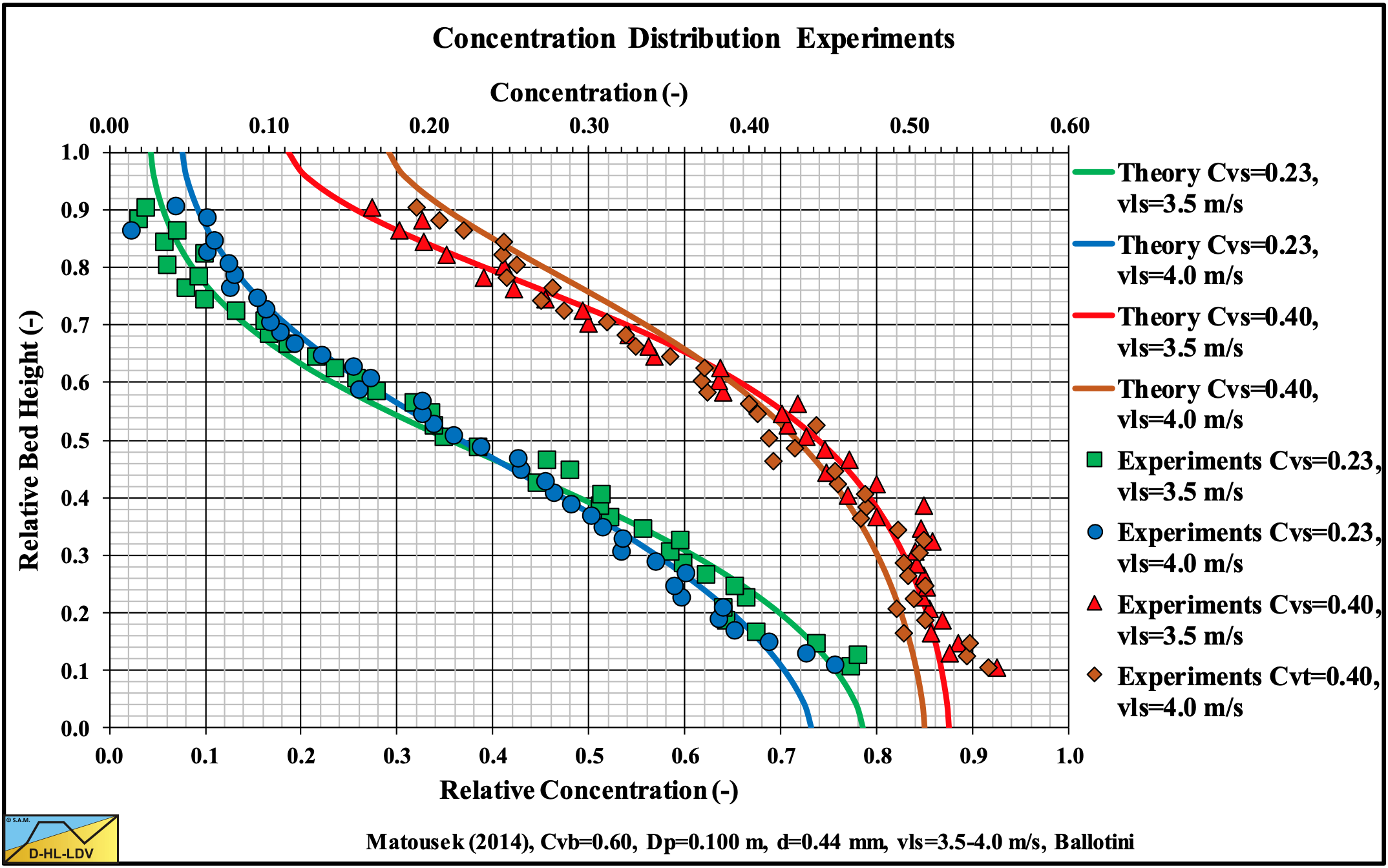

    Figure 13.7-29: Matousek et al. (2014) d=0.440 mm, Dp=0.1000 m, vls=3.5-4.0 m/s.

    Screen Shot 2020-08-13 at 1.45.21 PM.png

    Figure 13.7-30: Matousek et al. (2014) d=0.530 mm, Dp=0.1000 m, vls=3.0 m/s.

    Screen Shot 2020-08-13 at 1.46.17 PM.png

    Figure 13.7-31: Matousek et al. (2014) d=0.530 mm, Dp=0.1000 m, vls=3.5-4.0 m/s.

    Screen Shot 2020-08-13 at 1.49.41 PM.png

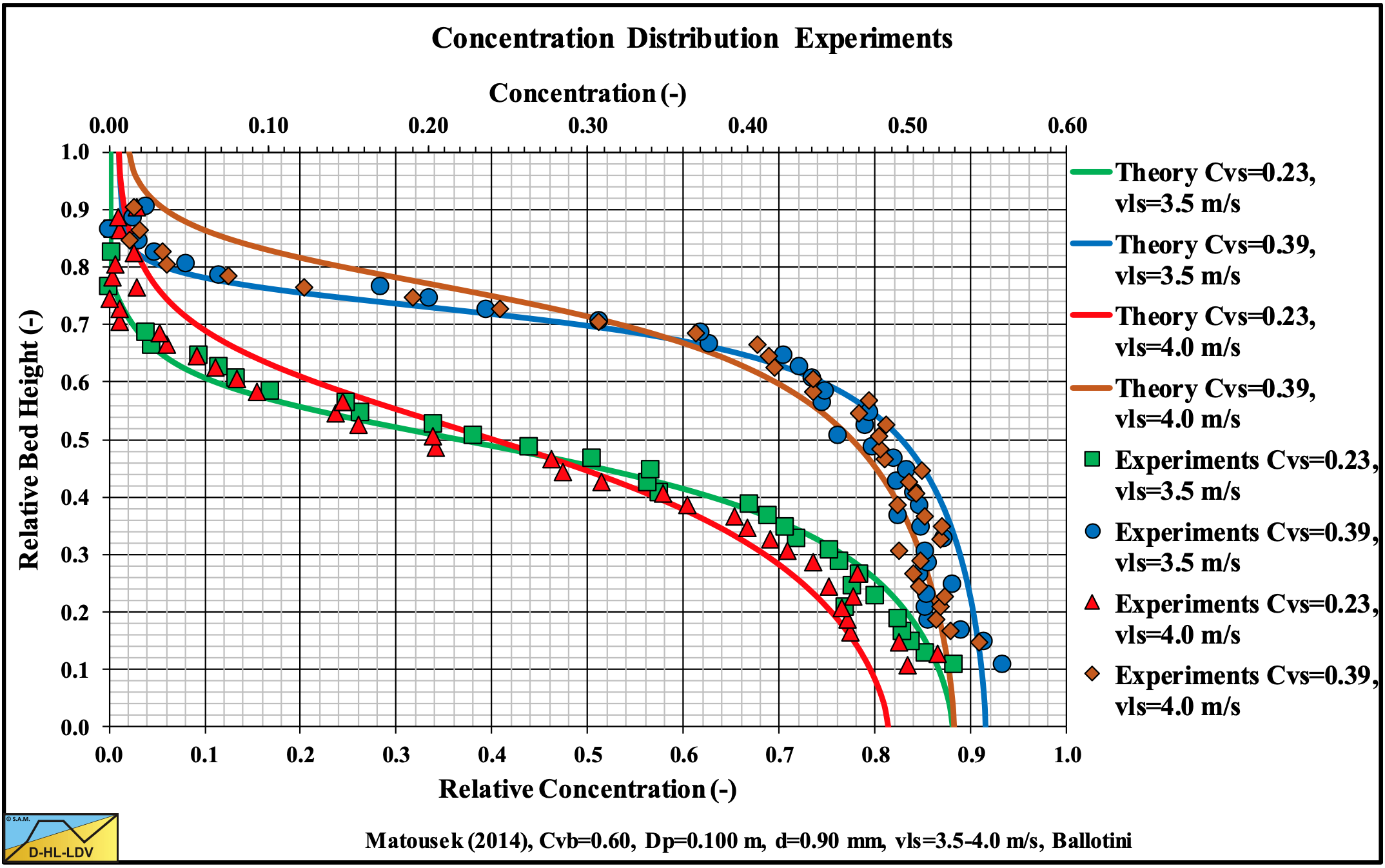

    Figure 13.7-32: Matousek et al. (2014) d=0.900 mm, Dp=0.1000 m, vls=3.5-4.0 m/s A.

    Screen Shot 2020-08-13 at 1.50.47 PM.png

    Figure 13.7-33: Matousek et al. (2014) d=0.900 mm, Dp=0.1000 m, vls=3.5-4.0 m/s B.

    Screen Shot 2020-08-13 at 1.52.18 PM.png

    Figure 13.7-34: Matousek et al. (2014) d=0.900 mm, Dp=0.1000 m, vls=3.5-4.0 m/s C.

    Screen Shot 2020-08-13 at 1.53.07 PM.png

    Figure 13.7-35: Matousek et al. (2014) d=0.120 mm, Dp=0.1500 m, vls=2.0-6.0 m/s.

    Screen Shot 2020-08-13 at 1.56.11 PM.png

    Figure 13.7-36: Matousek et al. (2014) d=0.370 mm, Dp=0.1500 m, vls=6.0 m/s.

    Screen Shot 2020-08-13 at 1.56.55 PM.png

    Figure 13.7-37: Matousek et al. (2009) d=0.370 mm, Dp=0.1500 m, vls=0.5-2.0 m/s.

    Screen Shot 2020-08-13 at 1.57.42 PM.png

    Figure 13.7-38: Matousek et al. (2009) d=0.370 mm, Dp=0.1500 m, vls=0.5-2.0 m/s.

    Screen Shot 2020-08-13 at 2.20.51 PM.png

    15.7.6 Vlasak et al. (2014)

    Figure 13.7-39: Vlasak et al. (2014) d=11.0 mm, Dp=0.1000 m, vls=1.8 m/s.

    Screen Shot 2020-08-13 at 2.23.27 PM.png

    Figure 13.7-40: Vlasak et al. (2014) d=11.0 mm, Dp=0.1000 m, vls=2.8 m/s.

    Screen Shot 2020-08-13 at 2.26.02 PM.png

    Figure 13.7-41: Vlasak et al. (2014) d=11.0 mm, Dp=0.1000 m, vls=4.1 m/s.

    Screen Shot 2020-08-13 at 2.27.05 PM.png
