Topic 03 covers: 1) Expressing a 3D force in Cartesian vector form; 2) Expressing a 3D force using coordinate direction angles; 3) Expressing a 3D force using projection angles; 4) Determining the magnitude and coordinate direction angles of a resultant force in 3D.

This topic is essential for analyzing force components in three-dimensional space using the given or measured angle information.

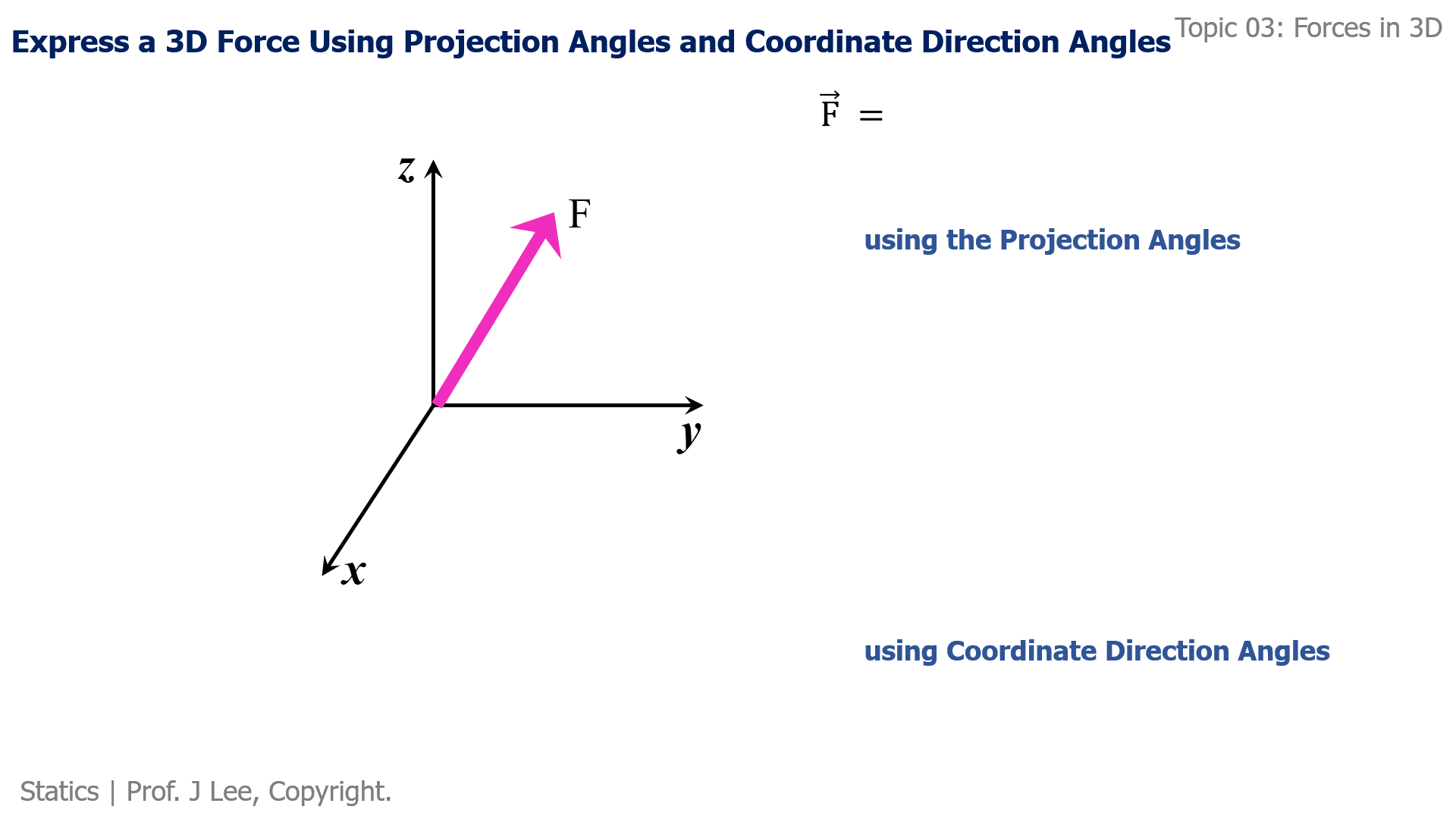

At the end of this topic, an animation is provided to visually demonstrate how to express a force in 3D using the given information: 1) with the given projection angles; 2) with the given coordinate direction angles.

ENGR 210 Topic 03_OER_F26 VER_Page_1.jpg
