Plotting a Single Point
To plot a single point, we can pass the x-coordinate, the y-coordinate, and an optional style specification. For example, the following command plots the point (2, 3) using a red star:
plot(2, 3, 'r*');
Solution

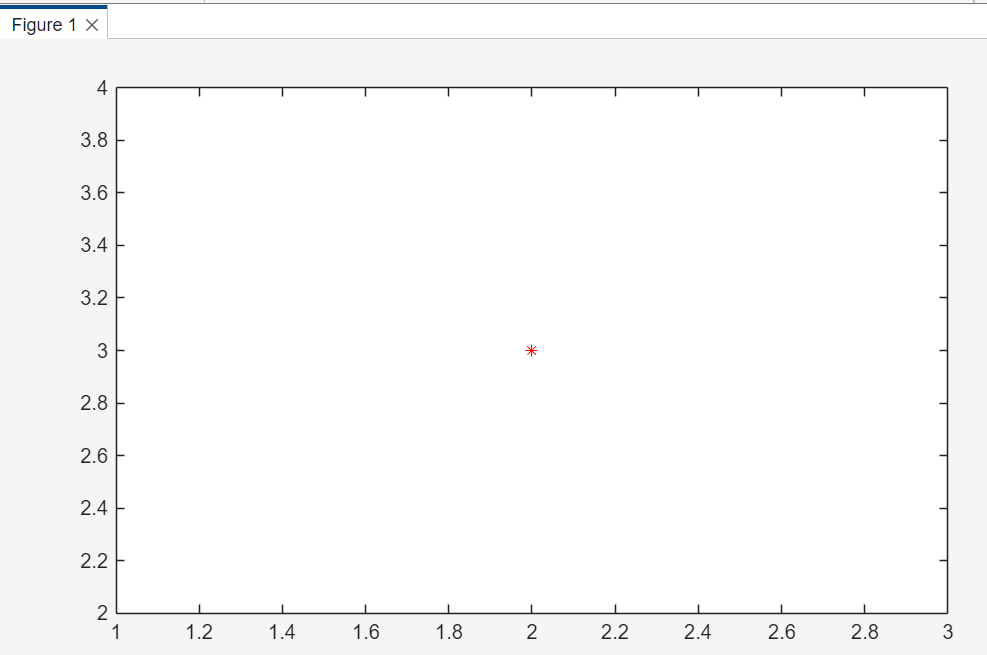

The first value is the x-coordinate, the second value is the y-coordinate, and the third input tells MATLAB how to draw the point. In this case, r means red and * means star marker.

Plotting One Vector
If you pass one vector to plot, MATLAB uses the vector values as the y-values. The x-values are automatically set to 1, 2, 3, and so on.
y = [2 4 9 10 12];
plot(y);
Solution

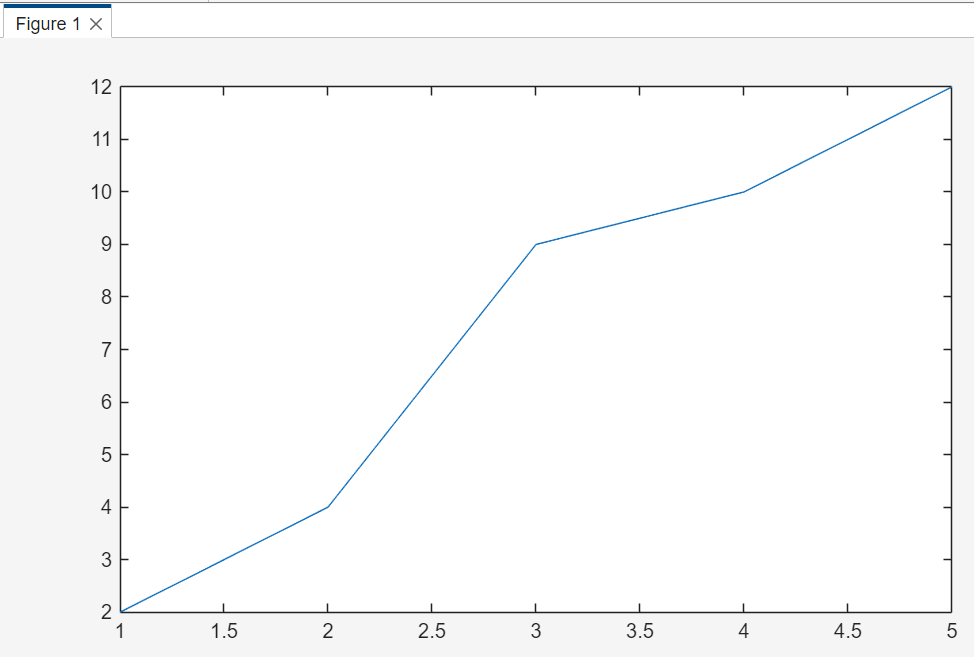

This creates a plot with five points. The y-values are 2, 4, 9, 10, and 12. The x-values are 1 through 5 because there are five elements in the vector.
Plotting y Versus x
Most of the time, we want to control both the x-values and the y-values. In that case, we pass two vectors to plot:
x = [2 4 6 8 10];
y = [2 4 9 10 12];
plot(x, y);
Solution
Here MATLAB plots each pair of values: (2, 2), (4, 4), (6, 9), (8, 10), and (10, 12).
By default, MATLAB connects the points with a thin solid blue line.

The x vector and y vector must have the same number of elements. If x has 5 values and y has 6 values, MATLAB will not know how to pair the data points correctly.
Customizing Plot Appearance
A default MATLAB plot is useful, but it is often not enough for a report or presentation. We usually want to adjust the color, marker, and line style so the plot is easier to read.
|
Category |
Examples |
Meaning |
|
Colors |
'b', 'r', 'g', 'k', 'm', 'c', 'y' |
blue, red, green, black, magenta, cyan, yellow |
|
Markers |
'o', '*', '+', 'x', 's', 'd', '^' |
circle, star, plus, x-mark, square, diamond, triangle |
|
Line styles |
'-', '--', ':', '-.' |
solid, dashed, dotted, dash-dot |
These symbols can be combined in one style string. For example:
plot(x, y, 'ro') % red circle markers
plot(x, y, 'k--') % black dashed line
plot(x, y, 'm*') % magenta star markers
plot(x, y, 'gd-') % green diamonds connected with a solid line
Projectile Motion
Let us use plotting to visualize a basic engineering problem: the trajectory of a projectile. Suppose a ball is launched at an angle with an initial velocity. If we ignore air resistance, the horizontal and vertical positions can be modeled as functions of time.
% Projectile trajectory example
clear; clc; clf;
angle = 45; % launch angle in degrees
velocity = 35.0; % initial velocity in m/s
g = 9.8; % gravitational acceleration in m/s^2
timeSteps = 0:0.1:5;
xPos = velocity * cosd(angle) * timeSteps;
yPos = velocity * sind(angle) * timeSteps - 0.5 * g * timeSteps.^2;
plot(xPos, yPos, 'm*')
xlabel('Horizontal Position (m)')
ylabel('Vertical Position (m)')
title('Projectile Motion')
grid on
In the above example, notice the use of cosd and sind. These functions use angles measured in degrees. If the angle were in radians, we would use cos and sin instead. Also notice the dot in timeSteps.^2. This tells MATLAB to square each element of the time vector individually.
Solution

Helpful Plot Functions
MATLAB provides several functions that help us manage figure windows and make plots more descriptive.
|
Function |
Purpose |
|
clf |
Clears the current figure window. |
|
figure |
Creates a new figure window or makes a specific figure active. |
|
hold on |
Keeps the current plot so that new plots are added to the same axes. |
|
hold off |
Turns off hold so new plots replace the old plot. |
|
legend |
Adds a legend that identifies plotted curves. |
|
grid on |
Adds grid lines to the plot. |
|
xlabel |
Adds a label below the x-axis. |
|
ylabel |
Adds a label next to the y-axis. |
|
title |
Adds a title above the plot. |
Every plot that you turn in for a lab report, homework assignment, or project should usually have a title, x-axis label, y-axis label, and, when needed, a legend.
Plotting Multiple Curves on One Figure
To plot more than one curve on the same axes, use hold on after the first plot. Then create the additional plots. When you are finished, use hold off.
Plotting four curves on the same figure.
clear; clc; clf;
x = 1:5;
y1 = [2 5 6 8 11];
y2 = [4 3 5 7 8];
y3 = [1 6 9 12 9];
y4 = [4 4 4 4 4];
figure(1)
plot(x, y1, 'k')
hold on
plot(x, y2, 'ko')
plot(x, y3, 'gd')
plot(x, y4, 'r--')
hold off
grid on
legend('y1', 'y2', 'y3', 'y4')
xlabel('x values')
ylabel('y values')
title('Four Curves on One Plot')
Solution

The order of labels in the legend matters. MATLAB matches the first legend label to the first plot, the second label to the second plot, and so on.
In MATLAB plot sin(x) and cos(x) on the same figure. Use x values ranging between 0 and 2\(\pi\). Add a title, legend, x-axis label, and y-axis label to the figure.
