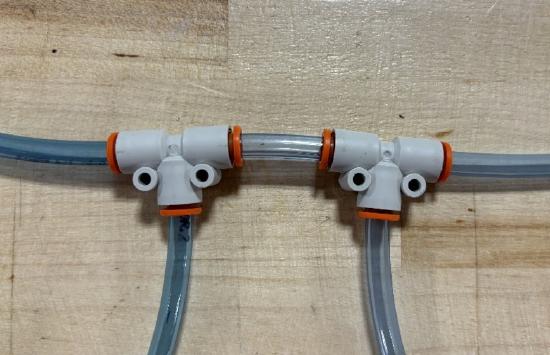

The Function of a Pneumatic Quick-Connect Fitting and What It Is Used For
A pneumatic quick-connect fitting is like a super-fast way to attach and detach air hoses in a pneumatic system. It's like snapping together two pieces of a puzzle—they fit together quickly and securely without needing any tools or complicated steps.
Imagine you have two hoses that you need to connect together to make the pneumatic system work. Instead of screwing them together or using clamps, you can use a quick-connect fitting. It's designed to snap into place with a simple push or pull, making the connection in just a few seconds.
So, in simple terms, a pneumatic quick-connect fitting makes it easy to join air hoses together in a pneumatic system without any fuss. It's like the fastener that holds everything together, allowing the system to work smoothly and efficiently.
What Is Its Symbol?
The symbol for a pneumatic quick-connect fitting in pneumatic schematics typically looks like two lines with a semicircular notch at one end. This symbol represents the male and female components of the quick-connect fitting, indicating how they fit together.
Here's a basic representation of the symbol for a pneumatic quick-connect fitting:
This symbol is commonly used in pneumatic diagrams to represent quick-connect fittings, making it easy to identify them within the system.
The Function of a Tee and Cross in Pneumatics and What It Is Used For
In pneumatics, a tee and a cross are types of connectors used to split or combine airflow in different directions.
- Tee: A tee connector looks like the letter "T" and is used to split airflow into two directions. It's like a fork in the road where the air can go either left or right. Tees are commonly used when you need to supply air to two different components or branches of a pneumatic system.
- Cross: A cross connector looks like a plus sign "+" and is used to combine airflow from multiple directions into one. It's like a meeting point where air from different paths comes together. Cross connectors are used when you need to bring air from different sources or branches of a pneumatic system into a single line.
Both tees and crosses play important roles in directing airflow within a pneumatic system, allowing for flexibility in system design and operation. They help ensure that air flows where it's needed to power various pneumatic components and perform tasks efficiently.
What Are Their Symbols?
In pneumatic schematics, the symbols for a tee and a cross are as follows:
Tee Symbol
Figure \(\PageIndex{3}\): Tee Fitting (ISO 1219).The tee symbol resembles the letter "T", indicating the branching of airflow into two directions.
Cross Symbol
Figure \(\PageIndex{4}\): Cross fitting (ISO 1219).The cross symbol resembles a plus sign "+" and indicates the merging of airflow from multiple directions into one.
These symbols are commonly used in pneumatic diagrams to represent tees and crosses, making it easy to identify their function within the system.
